Aelement - ANSI

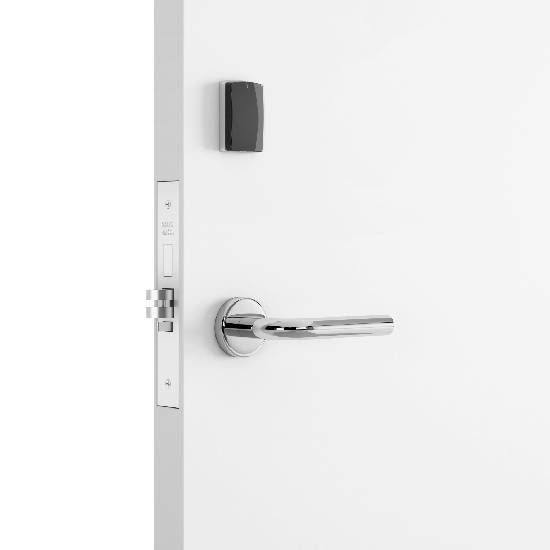

The Aelement ANSI version is specially designed to fit on most ANSI A 156.13 doors. The minimalistic design of the RFID reader looks stylish and discreet on any door. It also offers the choice of a wide range of designer lever handles and finishes.
Manufacturer: Salto
SKU: Aelement-ANSI

Features

  • Reader body made using double layered injection construction.
  • Clear dual colour LED light (green/red) to indicate lock authorisation.
  • Mechanical privacy option by a mechanical thumbturn. The user can activate the “do not disturb” function just by operating this thumbturn.
  • Special blink and beep indication when lock is in privacy mode.
  • Ability to enable/disable the acoustic signal.
  • Available with mechanical cylinder key override or access lock outs (override mortise cylinders).
  • Compatible with ANSI A 125.13. mortise lock retrofit.
  • UL10C compliant.
  • Declaration of conformity CE.
  • FCC/IC conformity

Mortise Lock features

  • Mortise lock with built in door detector, privacy detector and mechanical key override detector.
  • Automatic deadbolt model is available.
  • Axe distance 62mm.
  • Lock latched deadbolt made of steel.
  • Choice of finishes: satin stainless steel or gold enamelled.
  • Front plate shape: square.
  • Handed lock - L/R - reversible.
  • Inside always allows free egress
    (Anti-panic in combination with lock).
  • UL 10C listed (90 min).

Technical Characteristics

  • Covers door thicknesses: From 45mm up to 125mm.
  • Reader dimensions: 67mm x 45mm x 17,5mm.
  • Battery pack dimensions (inside): 116mm x 65mm x 25.5mm.
  • Handle block mechanism lock.
  • Handle rotation: 52º.
  • To be used in combination with SALTO LA1T17 mortise lock.
  • Square spindles available: 8mm split (SALTO spindles required).
