Aelement - EU

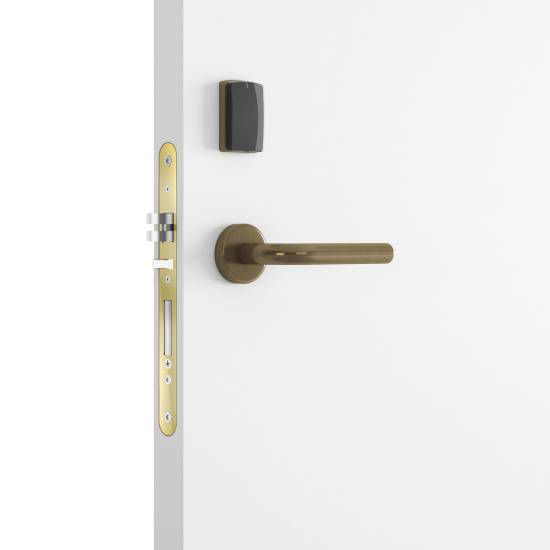

The Aelement EURO version is specially designed to fit on most Euro DIN 18250 profile doors. The minimalistic design of the RFID reader looks stylish and discreet on any door. It also offers the choice of a wide range of designer lever handles and finishes.
Manufacturer: Salto
SKU: Aelement-EU

Features

  • Reader body made using double layered injection construction.
  • Clear dual colour LED light (green/red) to indicate lock authorisation.
  • Mechanical privacy option by a mechanical thumbturn. The user can activate the “do not disturb” function just by operating this thumbturn.
  • Electronic privacy function option through button on the inside (for hotel industry). The user can activate the “do not disturb” function.
  • Special blink and beep indication when lock is in privacy mode.
  • Ability to enable/disable the acoustic signal.
  • Compatible with European DIN 18250 mortise lock retrofit.
  • EN1364-1 EI 60.
  • Declaration of conformity CE.
  • FCC/IC conformity

Mortise Lock features

  • Axe distance 72mm.
  • Lock latched deadbolt made of steel.
  • Automatic deadbolt projection lock.
  • Choice of finishes: satin stainless steel or gold enamelled.
  • Front plate shape: square or round.
  • Different backsets available: 55mm - 65mm.
  • Handed lock - L/R - not reversible.
  • Inside always allows free egress (Anti-panic in combination with lock).
  • EN 12209 compliant.

Technical Characteristics

  • Covers door thicknesses: From 35mm to 125mm.
  • Reader dimensions: 67mm x 45mm x 17,5mm.
  • Battery pack dimensions (inside): 116mm x 65mm x 25.5mm.
  • Handle block mechanism lock.
  • Handle rotation: 30º.
  • To be used in combination with SALTO LE7S07 mortise lock.
  • Square spindles available: 8mm split and 9mm split (SALTO spindles required).
