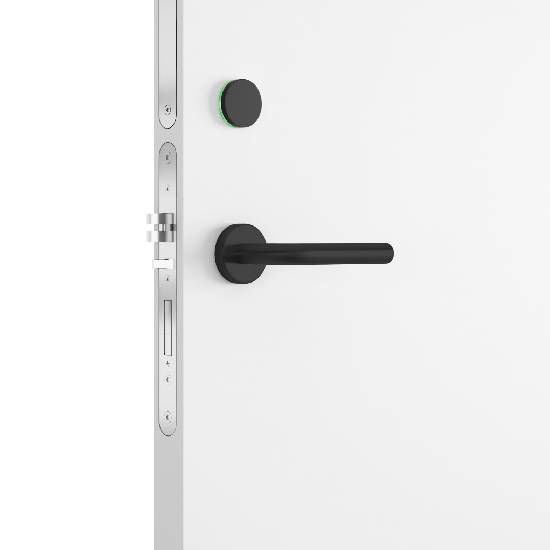

Aelement Fusion - EU / DIN

The Aelement Fusion’s small, customizable light ring reader offers a discreet electronic lock for any type of building looking to deploy electronic access control with a stylish, yet technologically-advanced solution. SALTO offers a variety of door handles and finishes to complement any door style. The Aelement Fusion EU version is specially designed to fit on DIN standards profile doors.
Manufacturer: Salto
SKU: Aelement-Fusion-EU-DIN

Features

  • SALTO’s stand-alone, battery powered electronic lock and technology, SVN data-on-card and advanced wireless technology with online, real-time capabilities.
  • Eliminates lock hardware on the door by encasing all electronic components and battery pack inside the door itself.
  • Clean, minimalistic new round light ring design reader.
  • Clear dual colour round ring LED light (green/red) to indicate lock authorisation.
  • Mechanical privacy option by a mechanical thumbturn. The user can activate the “do not disturb” function just by operating this thumbturn.
  • Special blink and beep indication when lock is in privacy mode.
  • Declaration of conformity CE.
  • FCC/IC conformity.

Mortise Lock features

  • Axe distance 72mm.
  • Lock latched deadbolt made of steel.
  • Automatic deadbolt projection lock.
  • Choice of finishes: satin stainless steel or gold enamelled.
  • Front plate shape: square or round.
  • Different backsets available: 55mm - 65mm.
  • Handed lock - L/R - not reversible.
  • Inside always allows free egress (Anti-panic in combination with lock).
  • EN 12209 compliant.

Technical Characteristics

  • Covers door thicknesses: From 40mm to 125mm.
  • Reader dimensions (H x W x D): 45mm x 45mm x 8,5mm.
  • Faceplate dimensions (H x W): 150mm x 20,5mm / 24,5mm.
  • Handle block mechanism lock.
  • Handle rotation: 30º.
  • To be used in combination with SALTO LE7Sx7 mortise lock.
  • Square spindles available: 8mm and 9mm split (SALTO spindles required).
