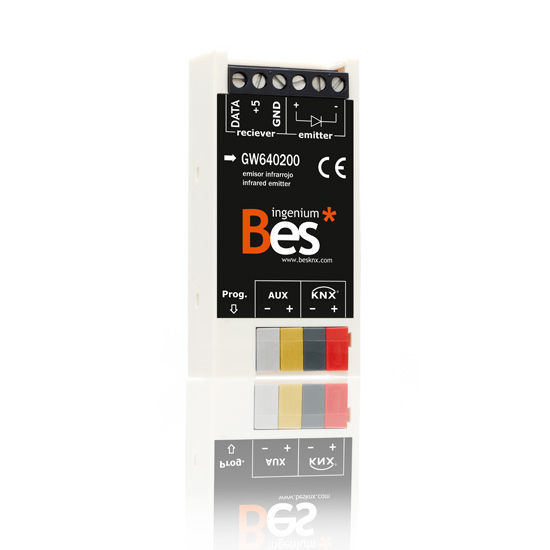

Bidirectional infrared transmitter with learning capability

Bidirectional infrared transmitter with learning capability
Manufacturer: BES
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: GW640200

Allows bidirectional emission and reception of infrared codes for control of either IR devices from KNX and KNX elements from infrared devices. Ready to control several IR devices from the same device allowing to storage up to 255 codes.

Supply: 29V DC from auxiliary KNX power supply
Consumption: 20mA from KNX BUS
Size: 37 x 77 x 17mm
Mounting: hidden next to AC device or ceiling integration

Datasheet

Programming manual
