Three-phase meter N Series

With MID authentication for effect and reactive energy installation dimension 4TE

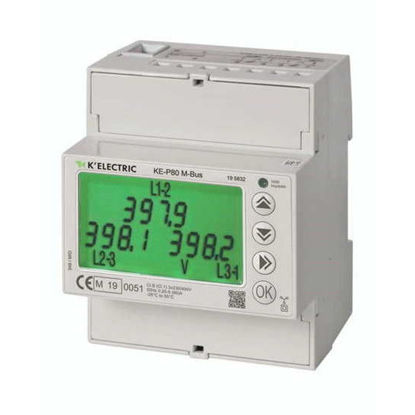

  • Digital three-phase meter up to 80A direct measurement

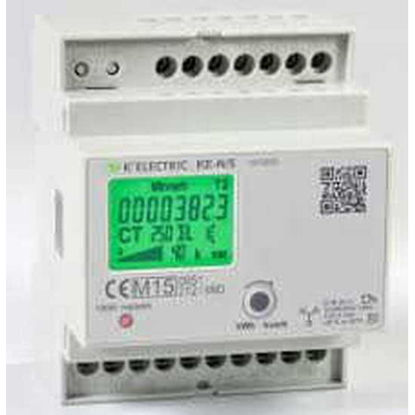

  • Digital three-phase transformer also for 5A
  • Display of active and reactive energy, current active and reactive power (consumption and supply)
  • Adjustable (unlimited changeable) converter ratio
  • Double tariff meter HT/NT with tariff switching input
  • S0-output for active and reactive energy
  • Optional extension through communication modules
  • Accuracy: active energy B (cl. 1), reactive energy A (cl. 2)
  • Made in EU,with EU wide valid MID certification
  • Communication modules mountable side by side (KNX, M-Bus, MOD-Bus, LAN, SD-Card, eVision)


Alternating current counter

with MID certification for active energy assembly dimension 1TE

  • Electronic single-phase AC counter up to 32 A direct measurement
  • Display of active energy and current active power (consumption and supply)
  • Accuracy: Active energy B (cl. 1)
  • 230V AC, 5(32)A, 50Hz
  • S0 interface for active energy
  • Made in the EU, with MID certification valid throughout the EU
  • Communication modules mountable side by side (KNX, M-Bus, MOD-Bus, LAN, SD-Card, eVision)
KE-N/519 55504 TETransformer measurement0,3
KE-N8019 55514 TEDirect measurement0,4
KE-W32 M, Alternating current counter19 56511 TEDirect measurement0,2
Communication modules
M-bus module19 55801 TE 0,1
MOD-bus module RTU module19 55811 TE 0,1
LAN-bus gateway module19 55821 TE 0,1
KNX module19 55831 TE 0,1
SD card module (data logger)19 55841 TE 0,1
Power pack for SD card module19 55851 TE 0,1
eVision module with embedded web app19 55861 TE 0,1


LAN server Modbus/TCP data concentrator

Performance characteristics
All data can be transferred via LAN/WLAN/internet using an HTTP interface in a web browser.

  • Device coupler via Modbus (RTU)
  • Data is transferred globally using the TCP/IP protocol
  • Maximum 31 measuring instruments via Modbus
  • Two gigabytes of memory are installed
  • Only 4 TE wide (72 mm)
Modbus  19 57010,311


Technical data

  LAN server modbus / TCP
Memory 2 GB internal
LAN HW interface RJ 45
LAN SW protocol TCP / IP
LAN baud rate 10 / 100 Mbit/s
Protocols at application level HTTP - FTP modbus / TCP
Interface to instruments RS 485
HW interface 2-wire, shielded
SW protocol Modbus RTU und ASCII
Measuring instruments directly connectable  31
DIN housing units  4
According to general standards EN 60950
Data acc. to IEE 802.3 AS, IEC 60950 EN 61000-6-2, EN61000-4-2 yes
