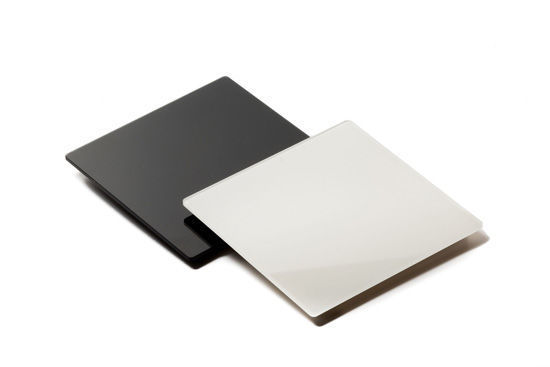

Cubik-SQ2

Square – 2 areas
Manufacturer: BES

[1] basic

Front glass fixed,
white or black.

[2] design

Front glass fixed,
print customizable.

[3] capriccio

Front glass interchangeable,
print customizable.

Devices available with the back casing in WHITE or BLACK,
within a range of up to 3 levels of customization…

Square format capacitive push-button with 2 independent touch areas, completely programmable. LED indicator associated with each touch area.

Built-in temperature sensor with PI thermostat for better energy effciency and comfort. On/Off, PWM or continuous temperature controller for main heat/cool system and additional.

Built-in humidity sensor with dew point measurement according to relative humidity and temperature.

Arithmetic Logic Unit and timers/counters
Supply: 29V DC from KNX BUS
Size: 88 x 88 x 6mm
Mounted on universal box, screwed on wall

Datasheet

Programming manual

FAQ

ETS

Picture of Cubik-SQ2 white Basic push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 white Basic push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 white Basic push-button 2 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: PL112100
Picture of Cubik-SQ2 black Basic push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 black Basic push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 black Basic push-button 2 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: PL112200
Picture of Cubik-SQ2 white Design push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 white Design push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 white Design push-button 2 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: PL212100
Picture of Cubik-SQ2 black Design push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 black Design push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 black Design push-button 2 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: PL212200
Picture of Cubik-SQ2 white Capriccio push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 white Capriccio push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 white Capriccio push-button 2 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: PL312100
Picture of Cubik-SQ2 black Capriccio push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 black Capriccio push-button 2 areas - Temp and humidity sensor
Cubik-SQ2 black Capriccio push-button 2 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 nedelje).
SKU: PL312200
