Cubik-SQ4

Square – 4 areas
Manufacturer: BES

[1] basic

Front glass fixed,
white or black.

[2] design

Front glass fixed,
print customizable.

[3] capriccio

Front glass interchangeable,
print customizable.

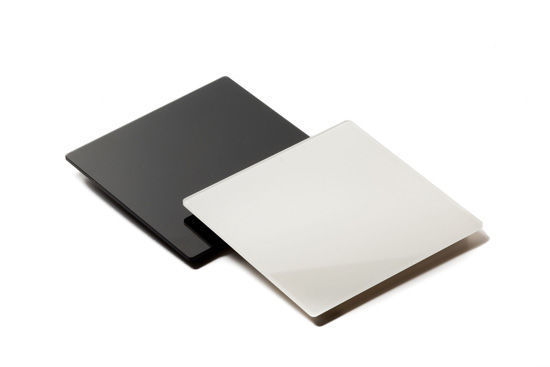

Devices available with the back casing in WHITE or BLACK,
within a range of up to 3 levels of customization…

Square format capacitive push-button with 4 independent touch areas, completely programmable. LED indicator associated with each touch area.

Built-in temperature sensor with PI thermostat for better energy effciency and comfort. On/Off, PWM or continuous temperature controller for main heat/cool system and additional.

Built-in humidity sensor with dew point measurement according to relative humidity and temperature.

Arithmetic Logic Unit and timers/counters
Supply: 29V DC from KNX BUS
Size: 88 x 88 x 6mm
Mounted on universal box, screwed on wall

Datasheet

Programming manual

FAQ

ETS

Picture of Cubik-SQ4 white Basic push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 white Basic push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 white Basic push-button 4 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: PL114100
Picture of Cubik-SQ4 black Basic push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 black Basic push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 black Basic push-button 4 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: PL114200
Picture of Cubik-SQ4 white Design push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 white Design push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 white Design push-button 4 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: PL214100
Picture of Cubik-SQ4 black Design push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 black Design push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 black Design push-button 4 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: PL214200
Picture of Cubik-SQ4 white Capriccio  push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 white Capriccio push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 white Capriccio push-button 4 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: PL314100
Picture of Cubik-SQ4 Black Capriccio  push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 Black Capriccio push-button 4 areas - Temp and humidity sensor
Cubik-SQ4 Black Capriccio push-button 4 areas - Temp and humidity sensor
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: PL314200
