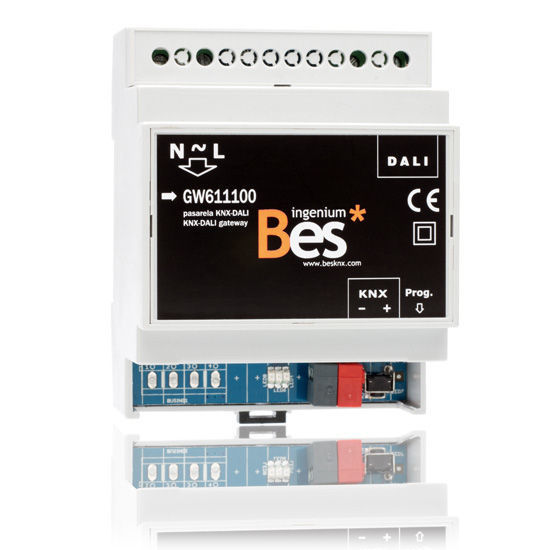

KNX – DALI. 1/16/64 gateway - DIN format

Gateway between DALI protocol lights and KNX devices. All luminaires connected to DALI BUS and all DALI groups are controlled by using the same physical address from KNX BUS. Off-line and on-line modes are permitted for DALI addressing and commissioning functions.

It allows to control up to 64 DALI lights and up to DALI 16 groups, including an integrated power supply for them. Possibility to control DALI standard ballasts or DALI emergencies (with extended parameters).

It permits the lights control through other KNX devices such as touch panels, pushbuttons, etc. Configurable values for each DALI device: Ramp control, lower limit and upper limit. Program up to 8 scenes for each DALI device.

Supply: 230V AC
Max. Power Consumption: 3.2VA @ 230V AC
KNX supply: 29V DC from BUS KNX
Consumption: 30mA
DIN rail mounted (4 modules)
