NH -Vertikalni rastavljač prekidača osigurača Multivert 100 - 185

NH 00 MSL Size 00 3-pole 160A / 690V

Mounting on 100mm
Bus bar systems

Mounting on 185mm
Bus bar systems with adapter top/bottom cable terminal



ItemItem-No.kg/pc.Packaging
NH 00 MSL with clamp straps 4-70mm214 80551,121
NH 00 MSL with V-connection14 80561,121
V clamps (1x)14 29080,041
Claw strap (set) for direkt assemby14 80630,11
Single adapter for mounting on 185mm SS-System14 80660,451
Twin adapter for mounting on 185mm SS-System14 80670,851
Single adapter for mounting on 185mm / claw strap14 80760,561
Twin adapter for mounting on 185mm / claw cramp14 80770,451
cover shield, set=2 pieces14 80610,451
Single adapter for current transformer14 01170,341
Twin adapter for current transformer14 01190,581
Current transformer for adapter 100 A, single-phase14 01210,511
Current transformer for adapter 100 A, triple-phase14 01220,781
Current transformer for adapter 150 A, single-phase14 01230,521
Current transformer for adapter 150 A, triple-phase14 01240,811
Primary tube for adapter as spacer (set = 3x)14 01250,371



Technical data

 NH 00 MSL
No. of poles3
Conventional free air thermal current links NH lth160A
Rated operational voltage Ue690V AC
Rated insulation voltage Ui1000V
Rated impulse withstand voltage Uimp8kV
Conditional short circuit making capacity mit NH
AC 400V80kA
AC 500V80kA
AC 690V50kA
Utilization categoryRated operational voltagecurrent Ie
AC 23B400VIe=160A
AC 22B500VIe=160A
AC 21B690VIe=100A
Degree of protection  IP 30
max. permissible power dissipation of solid links Pn  12W
Pogledajte kao Rešetka Lista
Sortirajte kao
Prikaz po stranici

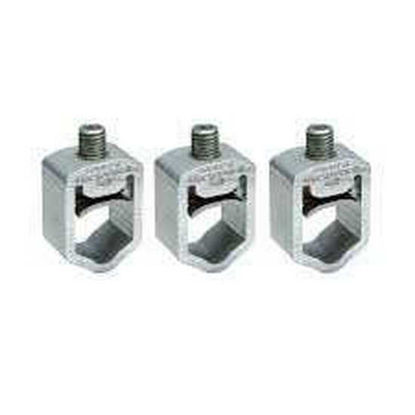

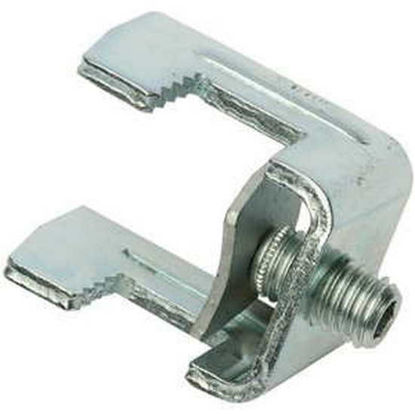

V-clamp size 00 10-95mm2
