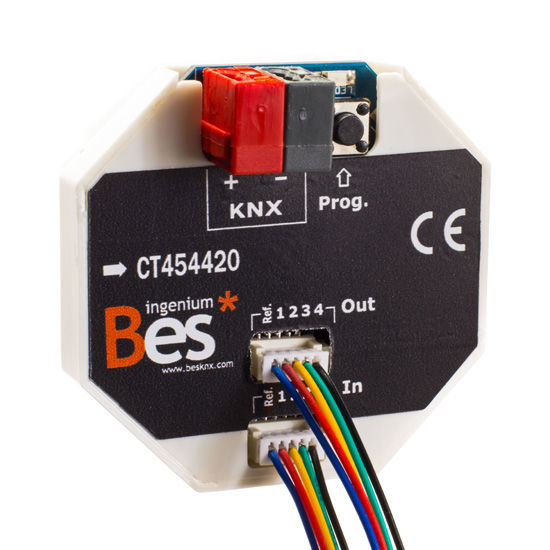

On/Off actuator - 4 inputs - 4 outputs SELV - Flush mount

On/Off actuator - 4 inputs - 4 outputs SELV - Flush mount
Manufacturer: BES
Availability: Out of stock - on backorder and will be dispatched once in stock (4 weeks).
SKU: CT454420

4 extra-low voltage (SELV) digital inputs module for connecting conventional pushbuttons or switches. This device has programmable inputs for working simultaneously or independently in different modes (binary inputs, blinds, dimmers, etc). 4 outputs for the control of signalling LEDs. Arithmetic-Logic Unit (AUL).

PARAM: Programming by ETS parameter application.

Supply: 29V DC from KNX BUS
Consumption: 9mA from KNX BUS
Inputs: 4 extra-low voltage inputs (SELV)
Outputs: 4 extra-low voltage outputs (SELV)
Maximum cabled distance: 30 meters
Size: 45 x 45 x 10mm
Mounting: Built-in on universal distribution box
