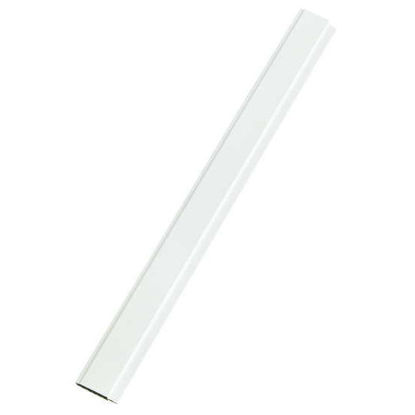

Profil zaštite šina
Technical specifications
| UL listed plastic: | |
| plastic | PA (polyamide) halogen-, phosphor-, silicone-free |
| Wall thickness | 1.0mm |
| Fire class | V0 |
| Glow wire test | 960 ° C |
| Temperature resistance | up to 190 ° C |
| dimensional stability | up to 210 ° C |
| Creep resistance | CTI 600 (according to IEC 60112) |
| For rail dimensions | 5 x 12-30mm / 10 x 12-30mm |
| Your advantages at a glance: | |
| Length of the profile | 1500mm (less waste) |
| High temperature resistance: | PA (polyamide) plastic, which is used in all modern switchgear |
| Fixed closure | Protection against accidental opening - no tool-free opening possible (slotted screwdriver) |
| Item | Item-No. | kg/pc. | Packaging |
| PANCERO Rail protection 5mm, length 1000mm | 10 6335 | 0,232 | 16 |
| PANCERO Rail protection 10mm, length 1000mm | 10 6340 | 0,225 | 10 |
