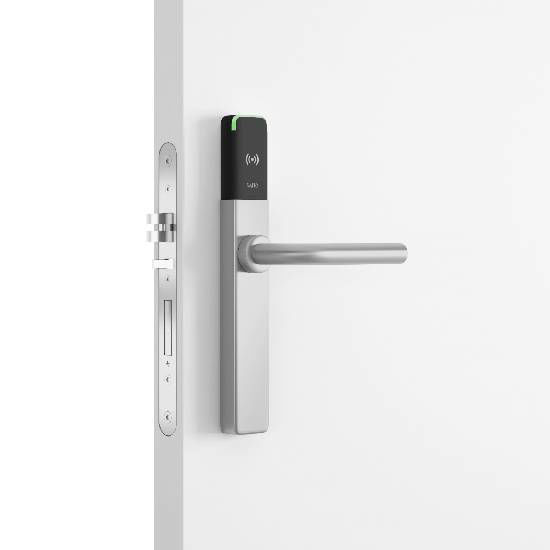

XS4 One - EU

The SALTO XS4 One is the evolution of the Original model with a built-in, totally new reader available in two colours. This version is compatible with most European mortise locks and cylinders.
Manufacturer: Salto
SKU: XS4-One-EU

Features

  • Simple installation is possible on any type of door, including those with narrow frames.
  • Body and escutcheon made of steel.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available.
  • Mechanical or electronic privacy option.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise  lock).
  • Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

Technical Characteristics

  • Covers door thicknesses: From 32mm up to 120mm.
  • Dimensions: 285mm x 42mm x 19,5mm.
  • Reversible handle left or right escutcheon.
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Handle rotation: 45º.
  • Distance from the handle to the cylinder: 47mm to 110mm.
  • Compatible with DIN and European mortise locks, mortise locks with Swiss profile cylinder, Australian standard mortise locks and narrow style mortise lock.
  • Compatible with European profile and Swiss profile cylinders.
  • Square spindles available: 7mm, 7.6mm split (Australia), 8mm, 8mm split, 9mm and 9mm split.

Technology platforms

SALTO Space

SALTO Space

  • ROM Scalable System
  • SVN data-on-card
  • SVN-Flex
  • BLUEnet Wireless
  • JustIN Mobile - Digital Key
SALTO KS

Salto KS

  • Cloud Service
  • Digital Key

Carriers

Key Card

  • MIFARE® DESFire EV2
  • MIFARE® Classic®
  • MIFARE® Ultralight® C
  • HID iCLASS® Seos™

Key Fob

  • MIFARE® DESFire EV2
  • MIFARE® Classic®

Silicone Wristband

  • MIFARE® DESFire EV2
  • MIFARE® Classic®

Digital Key

  • Bluetooth Low Energy
  • NFC - Near Field Communication

Wireless technologies

RFID

Bluetooth LE

NFC

Technical Drawing


XS4 One - EU Technical Drawing

Certifications

  • CE
  • FC
  • Fire
  • U
  • IP-55
  • PAS-24
  • FIRE-60 Min
  • FIRE-90 Min
  • EAC
  • BIS
  • IC
  • RCM
  • NCC
  • IMDA

(*) External escutcheon.

Certifications

Installation guide XS4 One

Installation guide XS4 One High Security
