XS4 Original - ANSI

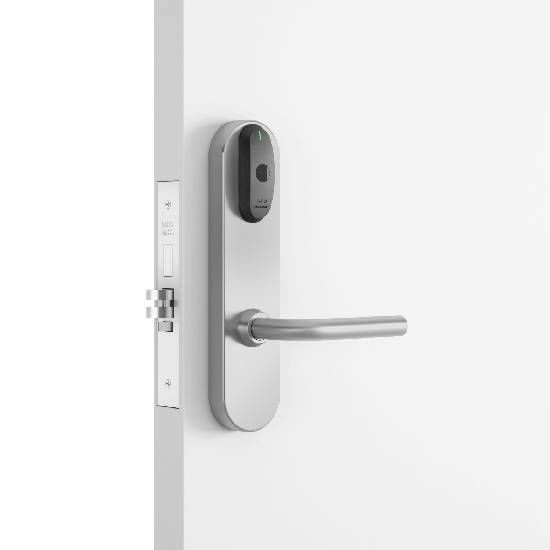

The XS4 Original wide body version for ANSI mortise locks is specially designed to be compatible with most ANSI mortise locks and tubular latches. It is specially designed for use on busy, high traffic doors that need additional strength.
Manufacturer: Salto
SKU: XS4-Original-ANSI

Features

  • Simple installation is possible on any type of door, including those with narrow frames.
  • Body and escutcheon made of steel.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override mortise cylinders).
  • Mechanical or electronic privacy option.
  • AMOK option for offline lockdown.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the SALTO LA1T15 series mortise lock).
  • Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

Technical Characteristics

  • Covers door thicknesses: From 32 (1-3⁄8") up to 120 mm (4-¾").
  • Dimensions: 290mm (11-27⁄64") x 67mm (2-5⁄8") x 20mm (25⁄32").
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Reversible handle left or right escutcheon.
  • Handle rotation: 52º.
  • Distance from the handle to the cylinder: 61mm (2-13⁄32"), 62mm (2-7⁄16") and 63mm (2-1⁄2").
  • Compatible with ANSI standard cylindrical and mortise locks.
  • Initial max. 4º pre-turn. SALTO recommends the use of a mortise lock with a maximum 4º pre-turn.
  • Compatible with ANSI mortise cylinders.
  • Square spindles available: 8mm (5⁄16"), 7mm diamond (9⁄32"), 8mm split (5⁄16"), 7mm diamond split (9⁄32") and 7,6mm (19⁄64").
