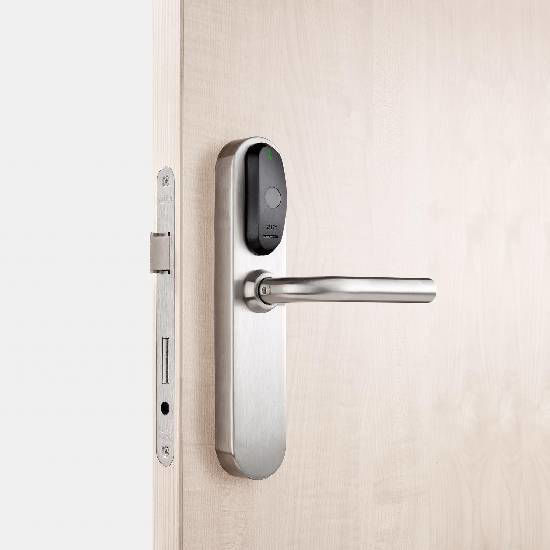

XS4 Original - DIN

The SALTO XS4 Original DIN version escutcheon is specially designed to meet the requirements of DIN18250 and 18251 standard doors prepared for DIN 18250 standard mortise locks. The XS4 Original DIN escutcheon maintains the fire rating of the door as no additional drilling of the door is required.
Manufacturer: Salto
SKU: XS4-Original-DIN

Features

  • The fire rating of the door is maintained as no additional drilling of the door is required.
  • Body and escutcheon made of steel.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override European profile cylinder) with audit trail facility available.
  • Electronic privacy option.
  • AMOK option for offline lockdown.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).

Technical Characteristics

  • Covers door thicknesses: From 32mm up to 120mm.
  • Dimensions: 269mm x 55mm x 22,5mm. (Outside) and 290mm x 67mm x 20mm. (Inside)
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Reversible handle left or right escutcheon.
  • Handle rotation: 30º.
  • Distance from the handle to the cylinder: 72mm.
  • Compatible with DIN mortise locks.
  • Square spindles available: 7mm, 8mm, 8mm split, 9mm and 9mm split.
