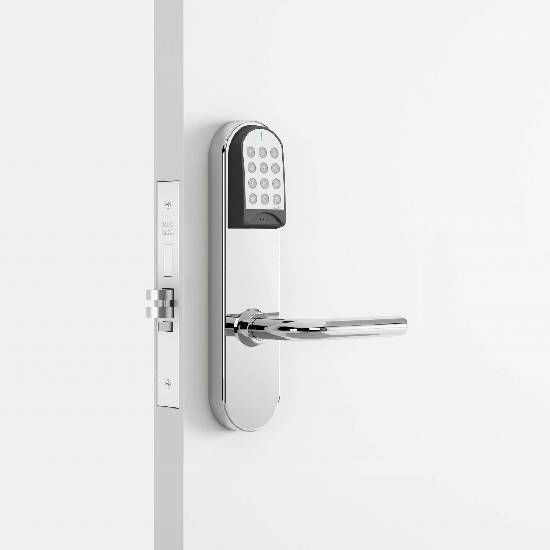

XS4 Original Keypad - ANSI

The SALTO XS4 ANSI electronic lock with keypad, designed to be compatible with most ANSI mortise locks and tubular latches, increases security and control as it offers the choice of three forms of authentication to grant access.
Manufacturer: Salto
SKU: XS4-Original-Keypad-ANSI

Features

  • Simple installation is possible on any type of door, including those with narrow frames.
  • Body and escutcheon made of steel.
  • Three forms of authentication configurations available to grant access:
    • Credential only.
    • Credential plus PIN.
    • Door code.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override mortise cylinders).
  • Mechanical or electronic privacy option.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the SALTO LA1T15 series mortise lock).

Technical Characteristics

  • Covers door thicknesses: From 32 (1-3⁄8") up to 120 mm (4-¾").
  • Dimensions: 290mm (11-27⁄64") x 67mm (2-5⁄8") x 20mm (25⁄32").
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Reversible handle left or right escutcheon.
  • Handle rotation: 52º.
  • Distance from the handle to the cylinder: 61mm (2-13⁄32"), 62mm (2-7⁄16") and 63mm (2-1⁄2").
  • Compatible with ANSI standard cylindrical and mortise locks.
  • Initial max. 4º pre-turn. SALTO recommends the use of a mortise lock with a maximum 4º pre-turn.
  • Compatible with ANSI mortise cylinders.
  • Square spindles available: 8mm (5⁄16"), 7mm diamond (9⁄32"), 8mm split (5⁄16"), 7mm diamond split (9⁄32") and 7,6mm (19⁄64").
