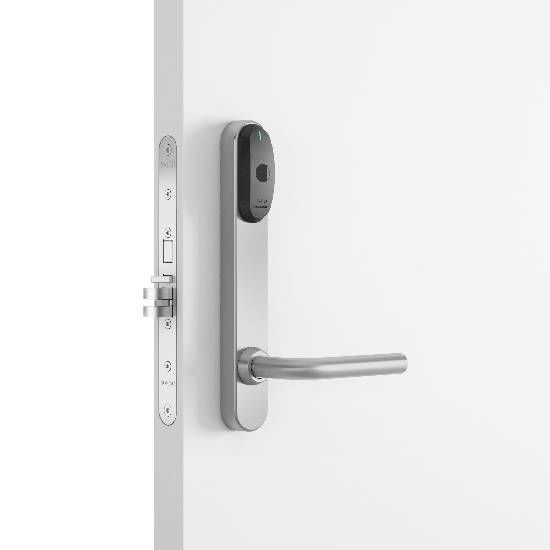

XS4 Original - Scandinavian

The XS4 Original Nordic narrow body version is specially designed to fit most Scandinavian profile and narrow profile framed doors and to work with standard Scandinavian mortise locks and cylinders.
Manufacturer: Salto
SKU: XS4-Original-Scandinavian

Features

  • Simple installation is possible on any type of door.
  • Body and escutcheon made of steel.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available.
  • Mechanical or electronic privacy option.
  • AMOK option for offline lockdown.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).
  • Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

Technical Characteristics

  • Covers door thicknesses: From 32mm up to 120mm.
  • Dimensions: 282mm x 40mm x 20mm.
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Reversible handle left or right escutcheon.
  • Handle rotation: 33º.
  • Distance from the handle to the cylinder: 105mm.
  • Compatible with Scandinavian standard mortise locks.
  • Initial max. 4º pre-turn. SALTO recommends the use of a mortise lock with a maximum 4º pre-turn.
  • Compatible with Scandinavian oval profile cylinders.
  • Square spindles available: 8mm and 8mm split.
